// Created on 2025/07/15 by jaehong

`timescale 1ns / 1ps

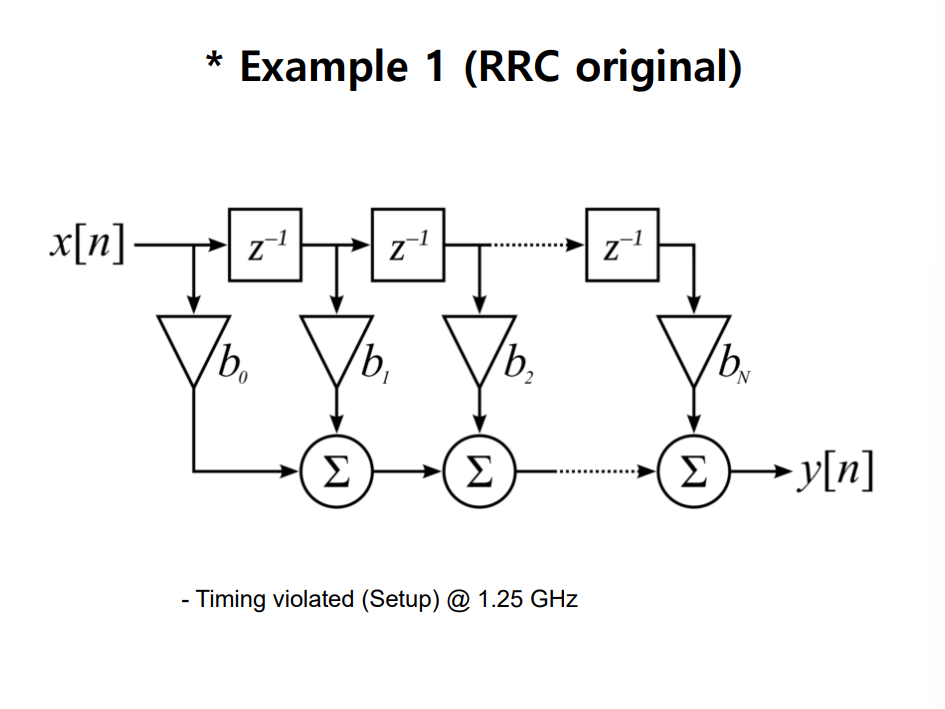

module rrc_filter #(
    parameter WIDTH = 7
)(
    input         clk,
    input         rstn,

    input  [WIDTH-1:0]        data_in,   // format : <1.6>
    output logic signed [WIDTH-1:0] data_out
);

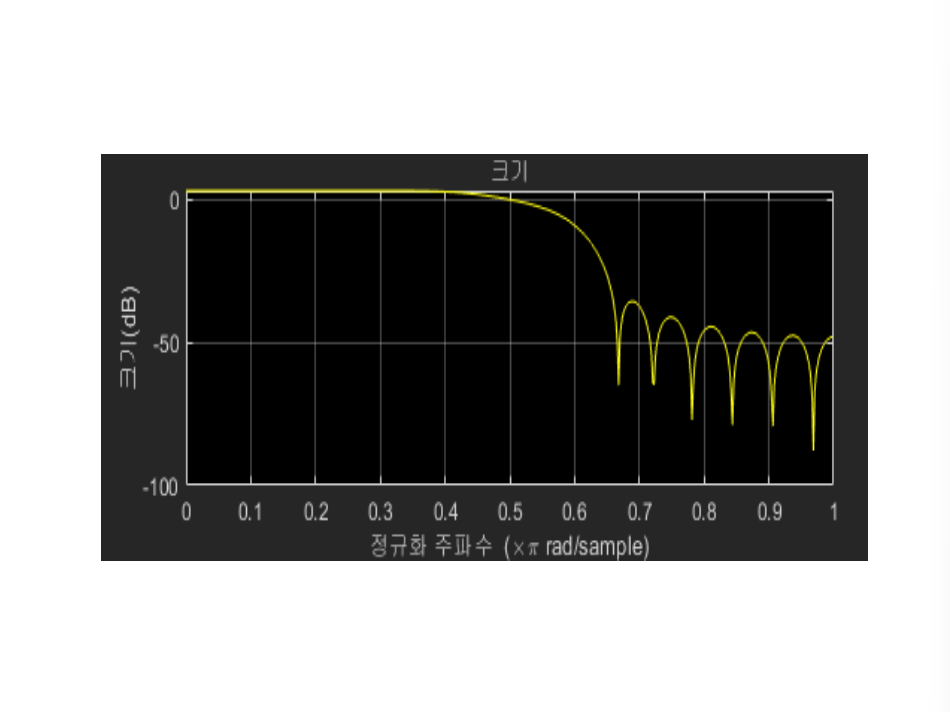

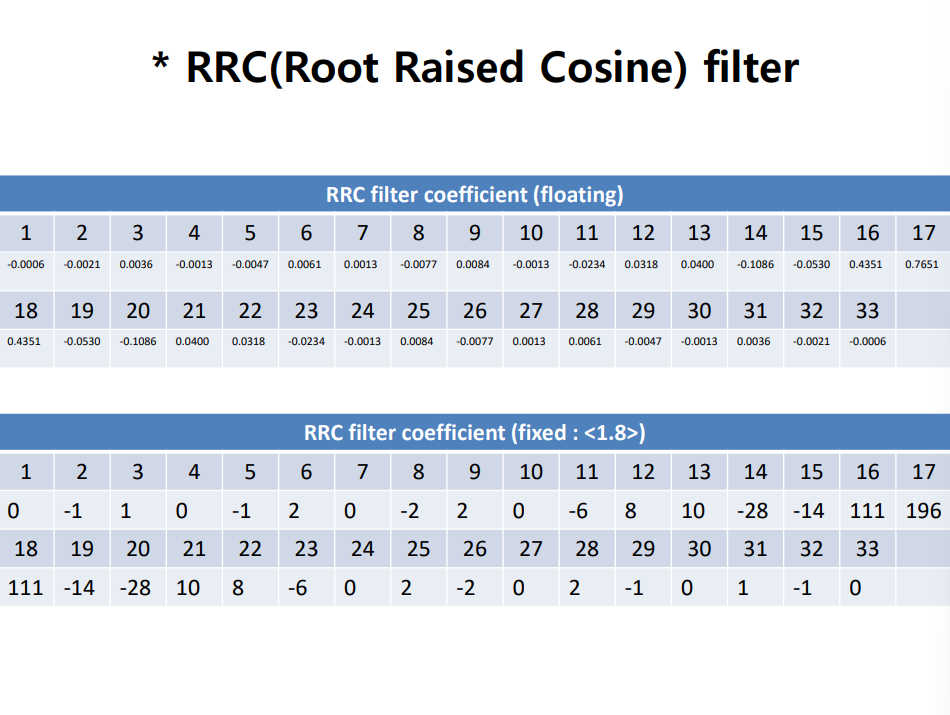

// coeff -3, -1.8, -7, -14, 24, 19, -62, -23, 225, 387, 225, -23, -62, 19, 24, -14, -7, 8, -1, -3

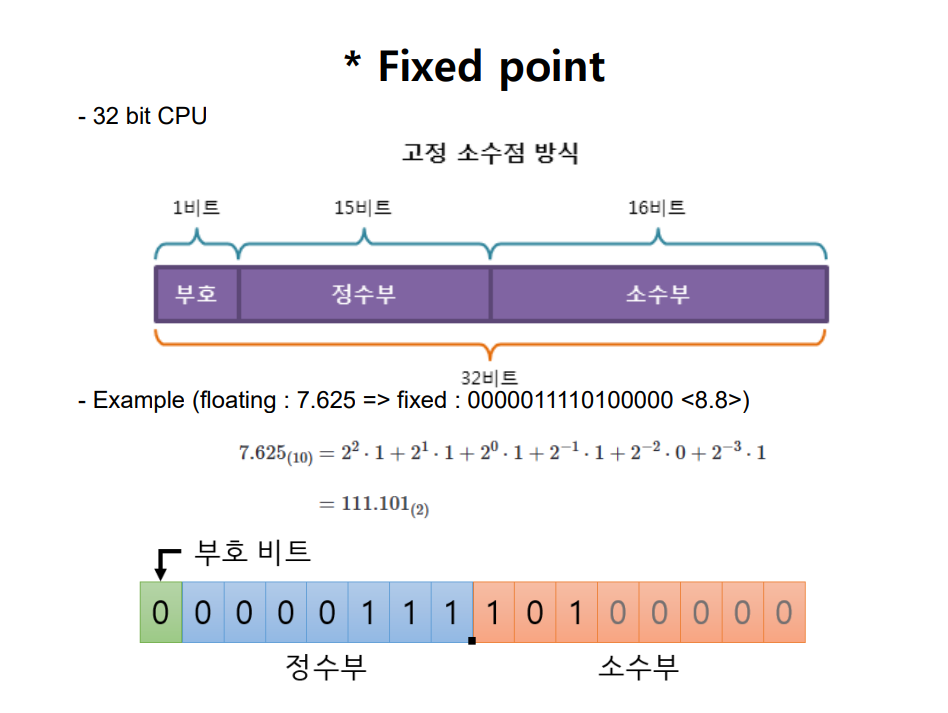

// format : <1.8>

logic signed [WIDTH+9-1:0] mul_00, mul_01, mul_02, mul_03;
logic signed [WIDTH+9-1:0] mul_04, mul_05, mul_06, mul_07;
logic signed [WIDTH+9-1:0] mul_08, mul_09, mul_10, mul_11;
logic signed [WIDTH+9-1:0] mul_12, mul_13, mul_14, mul_15;
logic signed [WIDTH+9-1:0] mul_16, mul_17, mul_18, mul_19;
logic signed [WIDTH+9-1:0] mul_20, mul_21, mul_22, mul_23;
logic signed [WIDTH+9-1:0] mul_24, mul_25, mul_26, mul_27;
logic signed [WIDTH+9-1:0] mul_28, mul_29, mul_30, mul_31;
logic signed [WIDTH+9-1:0] mul_32;

logic signed [WIDTH-1:0] shift_din [32:0];
integer i;
always@(posedge clk or negedge rstn) begin
    if (~rstn) begin
        for(i = 32; i >= 0; i=i-1) begin
            shift_din[i] <= 0;
        end
    end
    else begin
        for(i = 32; i > 0; i=i-1) begin
            shift_din[i] <= shift_din[i-1];
        end
        shift_din[0] <= data_in;
    end
end

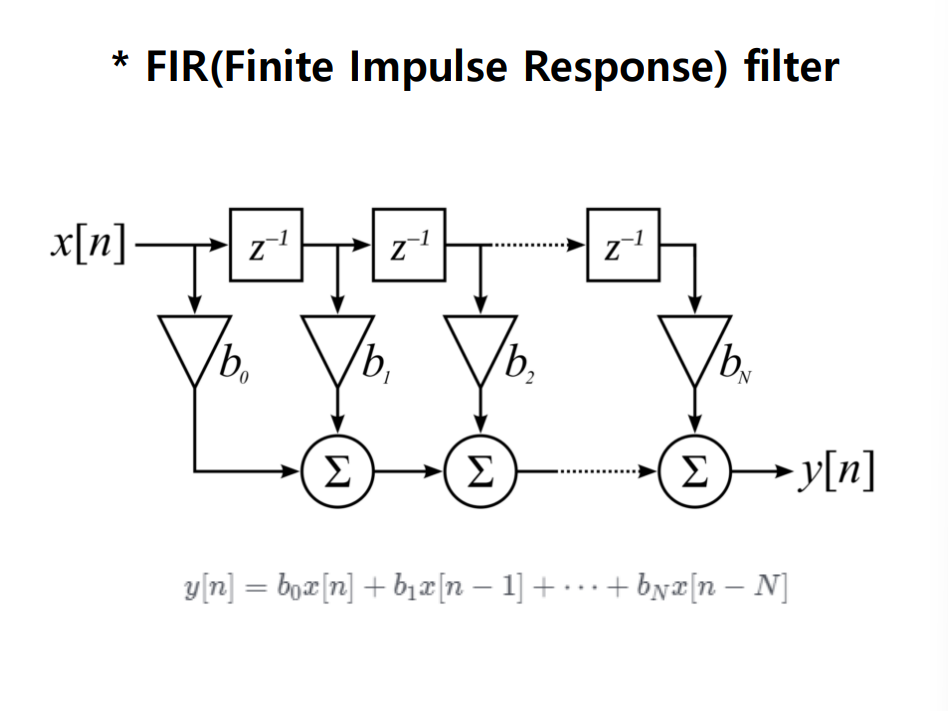

always @(*) begin
    mul_00 = shift_din[00]*0;
    mul_01 = shift_din[01]*-1;
    mul_02 = shift_din[02]*1;
    mul_03 = shift_din[03]*0;
    mul_04 = shift_din[04]*-1;
    mul_05 = shift_din[05]*2;
    mul_06 = shift_din[06]*2;
    mul_07 = shift_din[07]*-2;
    mul_08 = shift_din[08]*2;
    mul_09 = shift_din[09]*0;
    mul_10 = shift_din[10]*-6;
    mul_11 = shift_din[11]*8;
    mul_12 = shift_din[12]*10;
    mul_13 = shift_din[13]*-28;
    mul_14 = shift_din[14]*-14;
    mul_15 = shift_din[15]*111;
    mul_16 = shift_din[16]*196;
    mul_17 = shift_din[17]*111;
    mul_18 = shift_din[18]*-14;
    mul_19 = shift_din[19]*-28;
    mul_20 = shift_din[20]*10;
    mul_21 = shift_din[21]*8;
    mul_22 = shift_din[22]*-6;
    mul_23 = shift_din[23]*0;
    mul_24 = shift_din[24]*2;
    mul_25 = shift_din[25]*-2;
    mul_26 = shift_din[26]*0;
    mul_27 = shift_din[27]*2;
    mul_28 = shift_din[28]*-1;
    mul_29 = shift_din[29]*0;
    mul_30 = shift_din[30]*1;
    mul_31 = shift_din[31]*-1;
    mul_32 = shift_din[32]*0;
end

logic signed [WIDTH+16-1:0] filter_sum;
//always_comb begin
always @(*) begin
    filter_sum = mul_00 + mul_01 + mul_02 + mul_03 +
                 mul_04 + mul_05 + mul_06 + mul_07 +
                 mul_08 + mul_09 + mul_10 + mul_11 +
                 mul_12 + mul_13 + mul_14 + mul_15 +
                 mul_16 + mul_17 + mul_18 + mul_19 +
                 mul_20 + mul_21 + mul_22 + mul_23 +
                 mul_24 + mul_25 + mul_26 + mul_27 +
                 mul_28 + mul_29 + mul_30 + mul_31 +
                 mul_32;
end

logic signed [WIDTH+8-1:0] trunc_filter_sum;
assign trunc_filter_sum = filter_sum[WIDTH+16-1:8];

always_ff @(posedge clk or negedge rstn) begin
    if (~rstn)
        data_out <= 'h0;
    else if (trunc_filter_sum >= 63)
        data_out <= 63;
    else if (trunc_filter_sum < -64)
        data_out <= -64;
    else
        data_out <= trunc_filter_sum[WIDTH-1:0];
end

endmodule

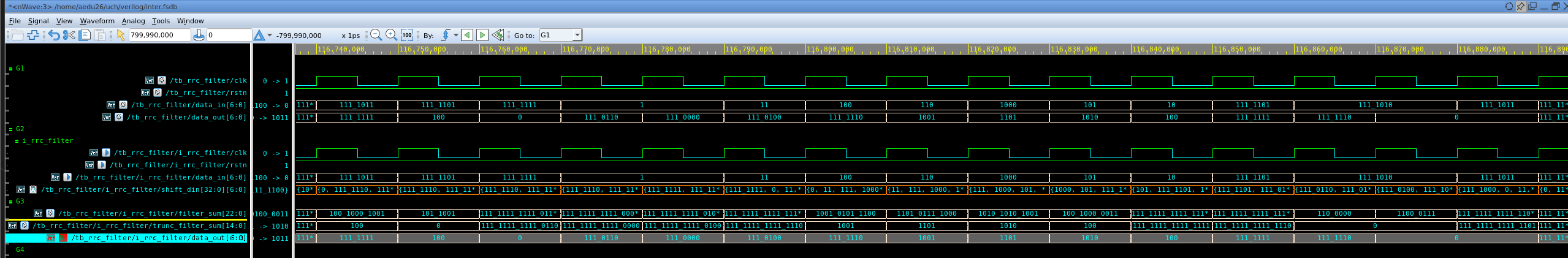

`timescale 1ns/10ps

module tb_rrc_filter();

logic clk, rstn;
logic signed [6:0] data_in;
logic signed [6:0] data_out;
logic signed [6:0] adc_data_in [0:93695];

initial begin
    clk <= 1'b1;
    rstn <= 1'b0;
    #55 rstn <= 1'b1;
    // #500000 $finish;
end

always #5 clk <= ~clk;

integer fd_adc_di;
integer fd_rrc_do;
integer i;
int data;
initial begin
    //always @(posedge clk) begin
    fd_adc_di = $fopen("./ofdm_i_adc_serial_out_fixed_30dB.txt", "r");
    //fd_adc_di = $fopen("./ofdm_adc_serial_out_fixed_30dB.txt", "r");
    fd_rrc_do = $fopen("./rrc_do.txt", "w");
    i = 0;
    while (!$feof(fd_adc_di)) begin
        void'($fscanf(fd_adc_di,"%d\n",data));
        adc_data_in[i] = data;
        i = i + 1;
    end
    #800000 $finish;
    $fclose(fd_rrc_do);
end

logic [23:0] adc_dcnt;
always_ff @(posedge clk or negedge rstn) begin
    if (~rstn)
        adc_dcnt <= 'h0;
    else
        adc_dcnt <= adc_dcnt + 1'b1;
end

logic [6:0] tmp_data_in;
assign tmp_data_in = adc_data_in[adc_dcnt];
logic [6:0] data_in;
always_ff @(posedge clk or negedge rstn) begin
    if (~rstn)
        data_in <= 'h0;
    else
        data_in <= tmp_data_in;
end

always_ff @(negedge clk) begin
    //$fd_rrc_do = $fopen("./rrc_do.txt", "w");

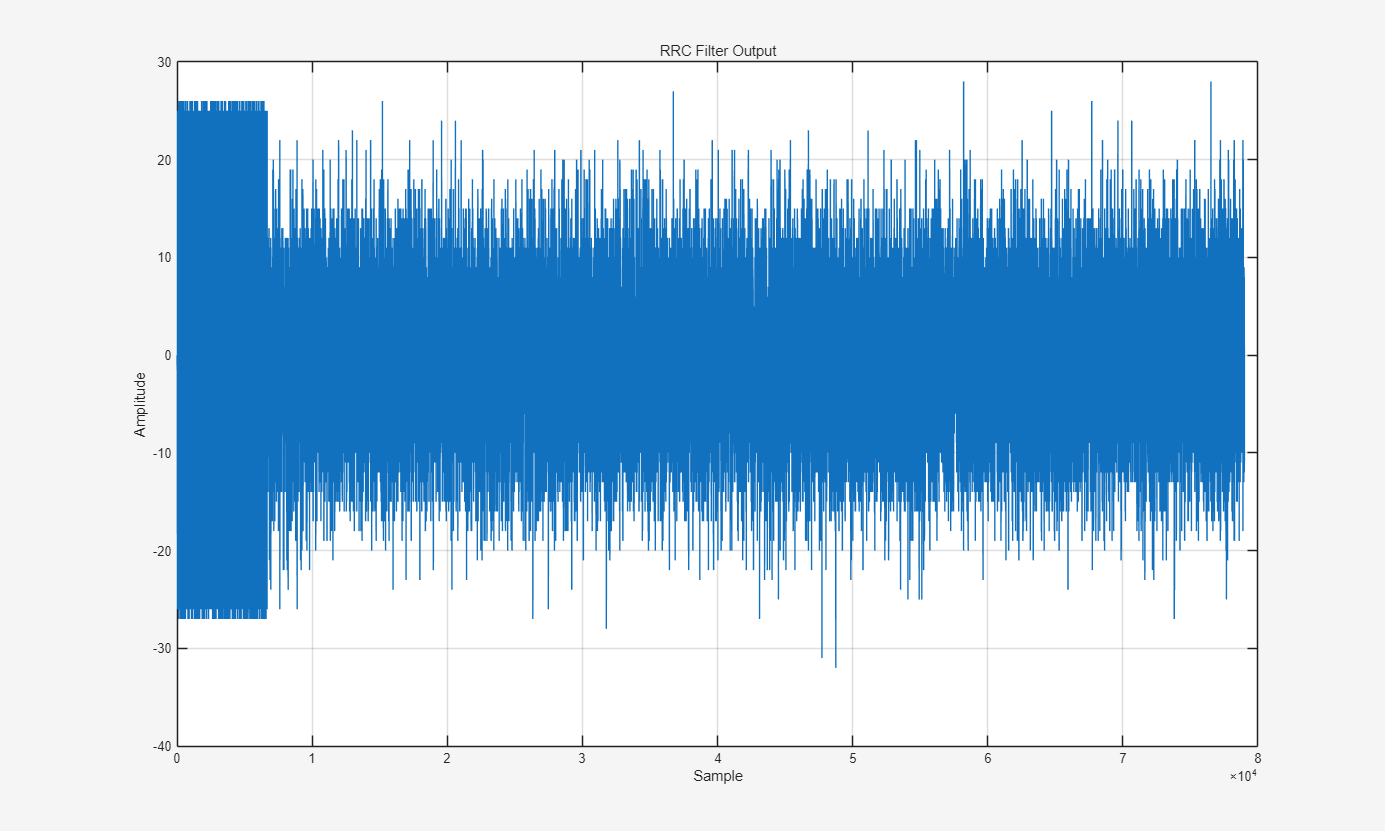

    $fwrite(fd_rrc_do, "%0d\n", data_out);
end

rrc_filter #(.WIDTH(7)) i_rrc_filter (
    .clk(clk),
    .rstn(rstn),
    .data_in(data_in),
    .data_out(data_out)
);

endmodule
