Run_Stop_Clear_Counter Design

< Code : UpDownCounter >

`timescale 1ns / 1ps

module UpDownCounter (
    input  logic        clk,
    input  logic        reset,
    input  logic        btn_mode,
    input  logic        btn_run_stop,
    input  logic        btn_clear,
    output logic [ 1:0] led_mode,
    output logic [ 1:0] led_run_stop,
    output logic [13:0] count
);

    logic tick_10hz;
    logic mode, run_stop, clear;

    clk_div_10hz U_Clk_Div_10hz (
        .clk      (clk),
        .reset    (reset),
        .run_stop (run_stop),
        .clear    (clear),
        .tick_10hz(tick_10hz)
    );

    up_down_counter U_Up_Down_Counter (
        .clk  (clk),
        .reset(reset),
        .tick (tick_10hz),
        .mode (mode),
        .clear(clear),
        .count(count)
    );

    control_unit U_Control_Unit (
        .clk         (clk),
        .reset       (reset),
        .btn_mode    (btn_mode),
        .btn_run_stop(btn_run_stop),
        .btn_clear   (btn_clear),
        .mode        (mode),
        .run_stop    (run_stop),
        .clear       (clear),
        .led_mode    (led_mode),
        .led_run_stop(led_run_stop)
    );

endmodule


module clk_div_10hz (
    input  logic clk,
    input  logic reset,
    input  logic run_stop,
    input  logic clear,
    output logic tick_10hz
);

    //logic [23:0] div_counter;
    logic [$clog2(10_000_000)-1:0] div_counter;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            div_counter <= 0;
            tick_10hz   <= 1'b0;
        end else begin
            if (run_stop) begin
                if (div_counter == 10_000_000 - 1) begin
                    div_counter <= 0;
                    tick_10hz   <= 1'b1;
                end else begin
                    div_counter <= div_counter + 1;
                    tick_10hz   <= 1'b0;
                end
            end
            if (clear) begin
                div_counter <= 0;
                tick_10hz   <= 1'b0;
            end
        end
    end

endmodule


module up_down_counter (
    input  logic        clk,
    input  logic        reset,
    input  logic        tick,
    input  logic        mode,
    input  logic        clear,
    output logic [13:0] count
);

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            count <= 0;
        end else begin
            if (clear) begin
                count <= 0;
            end
            if (mode == 1'b0) begin  // up counter
                if (tick) begin
                    if (count == 9999) begin
                        count <= 0;
                    end else begin
                        count <= count + 1;
                    end
                end
            end else begin  // down counter
                if (tick) begin
                    if (count == 0) begin
                        count <= 9999;
                    end else begin
                        count <= count - 1;
                    end
                end
            end
        end
    end

endmodule


module control_unit (
    input logic clk,
    input logic reset,
    input logic btn_mode,
    input logic btn_run_stop,
    input logic btn_clear,
    output logic mode,
    output logic run_stop,
    output logic clear,
    output logic [1:0] led_mode,
    output logic [1:0] led_run_stop
);
    /******************** MODE FSM ********************/

    typedef enum {
        UP,
        DOWN
    } state_mode_e;

    state_mode_e state_mode, next_state_mode;

    // state memory
    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            state_mode <= UP;
        end else begin
            state_mode <= next_state_mode;
        end
    end

    // transition logic
    always_comb begin
        next_state_mode = state_mode;
        mode = 0;
        led_mode = 2'b00;
        case (state_mode)
            UP: begin
                led_mode = 2'b01;
                if (btn_mode) begin
                    next_state_mode = DOWN;
                end
            end
            DOWN: begin
                mode = 1;
                led_mode = 2'b10;
                if (btn_mode) begin
                    next_state_mode = UP;
                end
            end
        endcase
    end

    /******************** RUN STOP CLEAR FSM ********************/

    typedef enum {
        STOP,
        RUN,
        CLEAR
    } state_counter_e;

    state_counter_e state_counter, next_state_counter;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            state_counter <= STOP;
        end else begin
            state_counter <= next_state_counter;
        end
    end

    always_comb begin
        next_state_counter = state_counter;
        run_stop = 0;
        clear = 0;
        led_run_stop = 2'b00;
        case (state_counter)
            STOP: begin
                led_run_stop = 2'b01;
                if (btn_run_stop) next_state_counter = RUN;
                else if (btn_clear) next_state_counter = CLEAR;
            end
            RUN: begin
                run_stop = 1;
                led_run_stop = 2'b10;
                if (btn_run_stop) next_state_counter = STOP;
            end
            CLEAR: begin
                clear = 1;
                next_state_counter = STOP;
            end
        endcase
    end

endmodule

< Comment >

clk_div_10hz
run_stop과 clear 신호를 받아 상태에 따라 카운터 동작을 제어한다.

up_down_counter
clear 신호를 받아 카운터 값을 즉시 초기화한다.
→ 예기치 않은 상태에서도 원하는 시점에 카운터를 안정적으로 리셋할 수 있다.

control_unit
하나의 control_unit에서 상태 구분용 제어 신호를 받아 여러 개의 FSM(mode, run/stop/clear)을 동시에 처리한다.
각 FSM에서 led_mode와 led_run_stop 출력을 직접 생성하도록 설계하여 가독성과 직관성이 향상된다.

< 파일 >

sources (Class)

top_UpDownCounter.sv

button_detector.sv

UpDownCounter.sv

fndController.sv

constrs (Class)

Basys-3-Master.xdc

Serial 통신 프로토콜

1. UART

비동기(Asynchronous) 통신 방식
Baud rate(bps, bit per second) 설정 값에 따라 송수신 속도 결정
송·수신 양측의 속도 설정이 다르면 통신 불가
동기 신호가 없어 에러율이 상대적으로 높음
송수신 속도에 제한이 있음
1:1 통신만 가능 (멀티포인트 불가)
송·수신 측에서 내부 클럭을 생성하여 타이밍 유지

2. I²C

동기(Synchronous) 통신 방식
SCL(클럭)과 SDA(데이터) 2선으로 동작
슬레이브 주소(Address)를 지정해 통신 → SPI보다 속도가 느림
N:N 통신 가능 (하나의 버스에 여러 마스터·슬레이브 연결 가능)
Chip Select 신호선 불필요 (주소로 구분)
송신 또는 수신 중 한 방향만 가능 (Half-duplex)

3. SPI

동기(Synchronous) 통신 방식
SCLK(클럭), MOSI, MISO, CS(Chip Select) 신호 사용
클럭에 맞춰 매우 빠른 데이터 전송 가능 → 세 방식 중 가장 빠름
1:N 통신 (마스터 1개, 다수 슬레이브 가능)
슬레이브 선택을 위해 Chip Select 신호선 사용
송수신 동시 가능 (Full-duplex)

UART / I²C / SPI 비교

구분	UART	I²C	SPI
통신 방식	비동기	동기	동기
데이터선	Tx, Rx	SDA, SCL	MOSI, MISO, SCLK, CS
속도	낮음	중간	빠름
통신 구조	1:1	N:N	1:N
Chip Select	X	X	O
Duplex	Full	Half	Full
장점	간단, 배선 적음	배선 적음, 다중 지원	빠름, 동시 송수신
단점	느림, 멀티 불가	SPI보다 느림	배선 많음, CS 관리 필요

Uart (Transmitter) Design

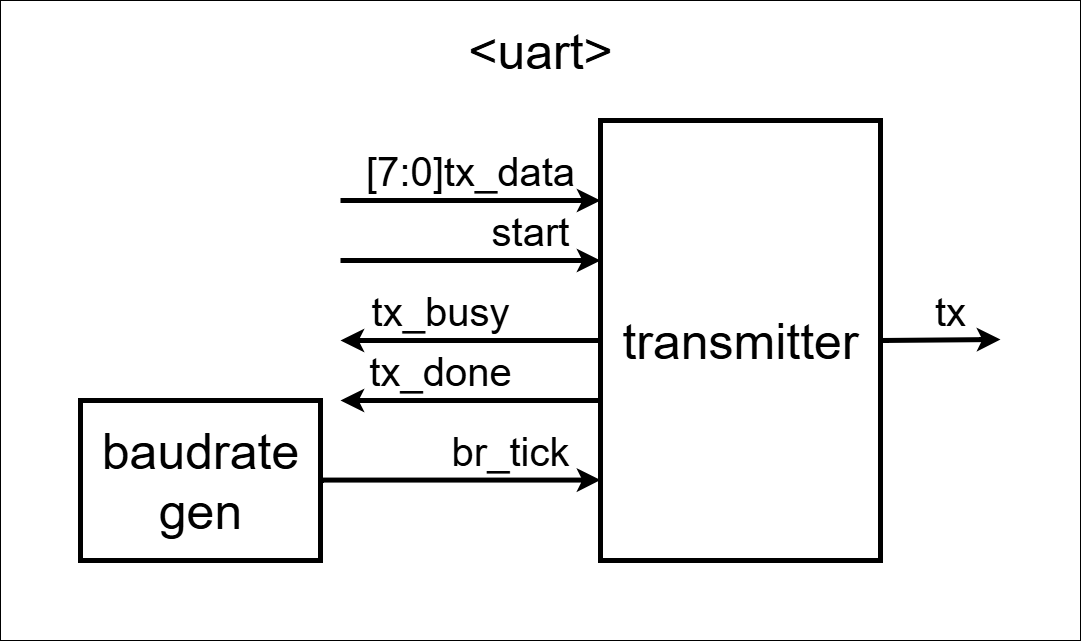

< Block Design >

alt text

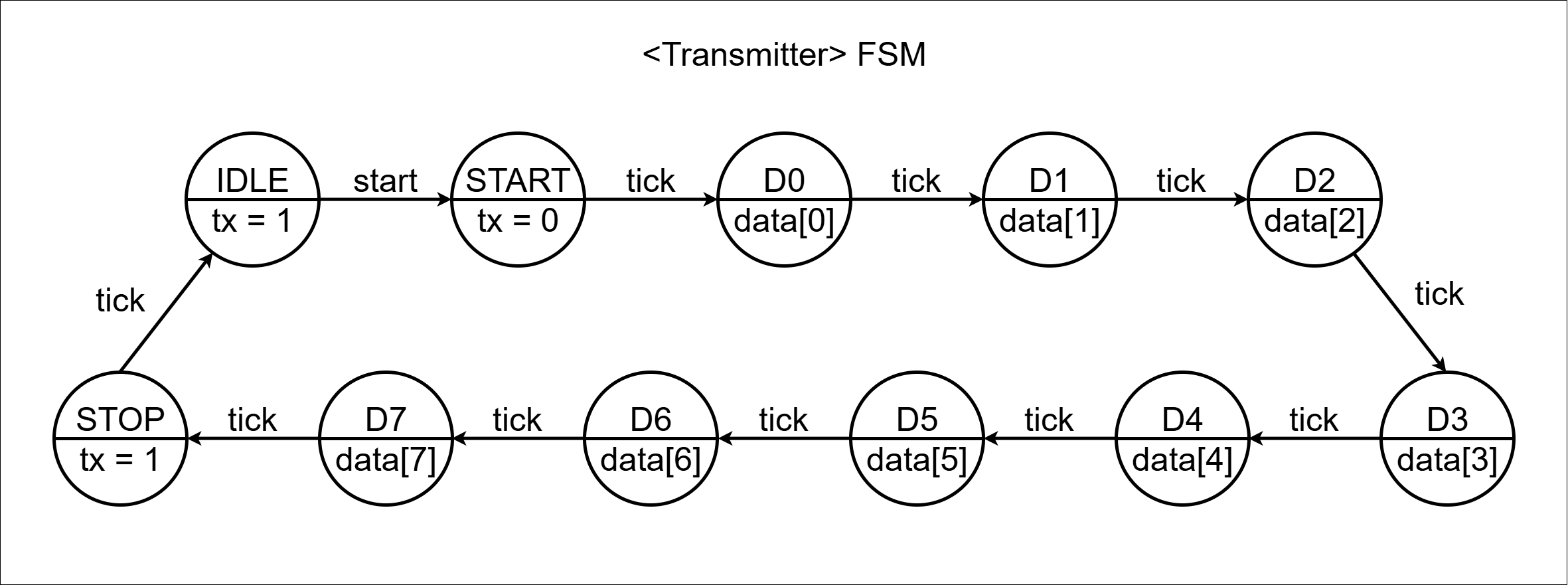

< FSM (Transmitter) >

alt text

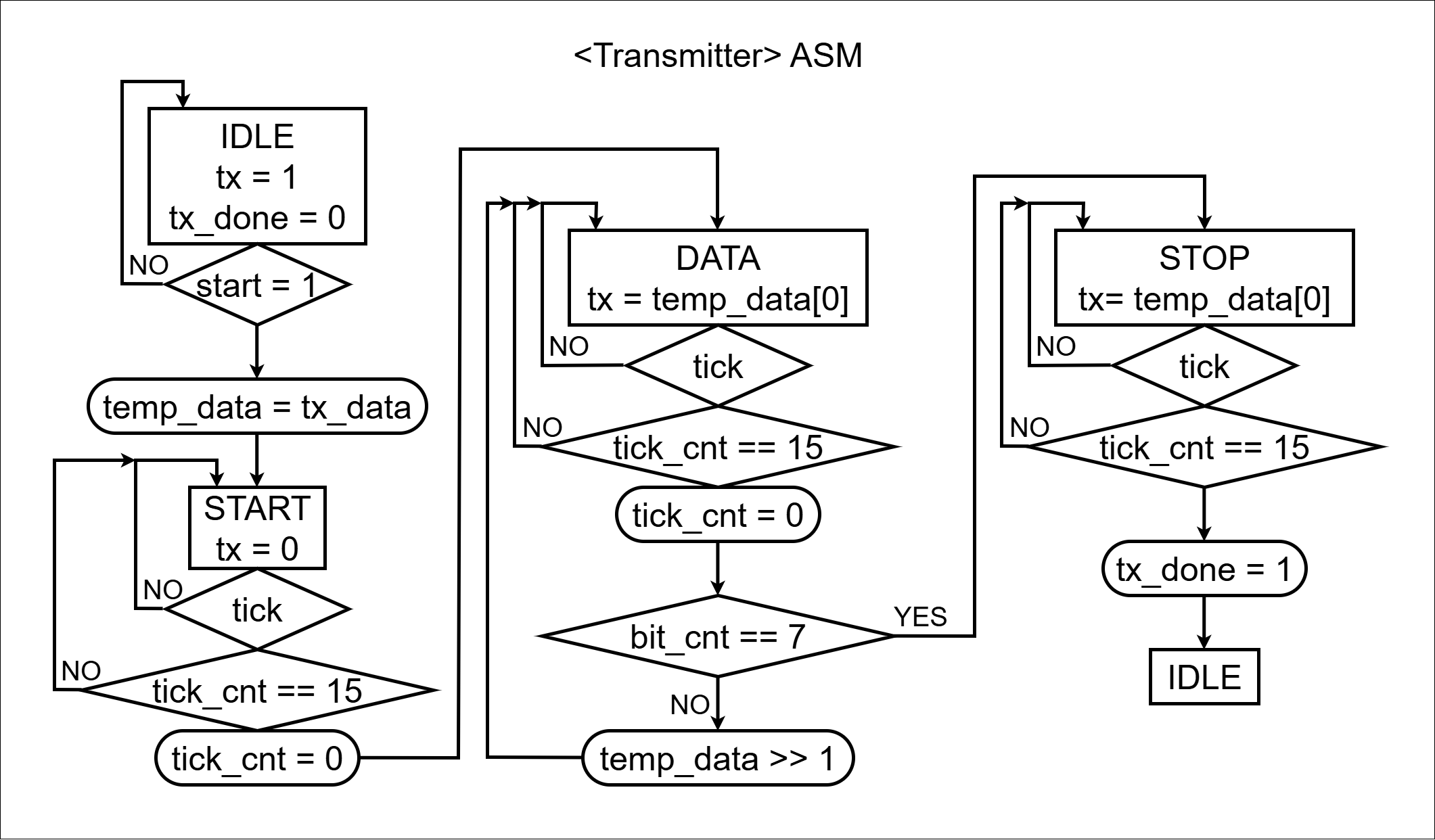

< ASM (Transmitter) >

alt text

< Code : Uart (Transmitter) >

`timescale 1ns / 1ps

module uart (
    input  logic       clk,
    input  logic       reset,
    input  logic       start,
    input  logic [7:0] tx_data,
    output logic       tx,
    output logic       tx_busy,
    output logic       tx_done
);

    logic br_tick;

    baudrate_gen U_Baudrate_Gen (
        .clk    (clk),
        .reset  (reset),
        .br_tick(br_tick)
    );

    transmitter U_Transmitter (
        .clk    (clk),
        .reset  (reset),
        .br_tick(br_tick),
        .start  (start),
        .tx_data(tx_data),
        .tx_busy(tx_busy),
        .tx_done(tx_done),
        .tx     (tx)
    );

endmodule


module baudrate_gen (
    input  logic clk,
    input  logic reset,
    output logic br_tick
);

    //logic [$clog2(100_000_000/9600/16)-1:0] br_counter;
    logic [3:0] br_counter;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            br_counter <= 0;
            br_tick <= 1'b0;
        end else begin
            //if (br_counter == 100_000_000 / 9600 / 16 - 1) begin  // 9600hz 9600bps
            if (br_counter == 10 - 1) begin
                br_counter <= 0;
                br_tick <= 1'b1;
            end else begin
                br_counter <= br_counter + 1;
                br_tick <= 1'b0;
            end
        end
    end

endmodule


module transmitter (
    input  logic       clk,
    input  logic       reset,
    input  logic       br_tick,
    input  logic       start,
    input  logic [7:0] tx_data,
    output logic       tx_busy,
    output logic       tx_done,
    output logic       tx
);

    typedef enum {
        IDLE,
        START,
        DATA,
        STOP
    } tx_state_e;

    tx_state_e tx_state, tx_next_state;

    logic [7:0] temp_data_next, temp_data_reg;
    logic tx_reg, tx_next;
    logic [3:0] tick_cnt_reg, tick_cnt_next;
    logic [2:0] bit_cnt_reg, bit_cnt_next;
    logic tx_done_reg, tx_done_next;
    logic tx_busy_reg, tx_busy_next;

    assign tx = tx_reg;
    assign tx_busy = tx_busy_reg;
    assign tx_done = tx_done_reg;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            tx_state      <= IDLE;
            temp_data_reg <= 0;
            tx_reg        <= 1'b1;
            tick_cnt_reg  <= 0;
            bit_cnt_reg   <= 0;
            tx_done_reg   <= 0;
            tx_busy_reg   <= 0;
        end else begin
            tx_state      <= tx_next_state;
            temp_data_reg <= temp_data_next;
            tx_reg        <= tx_next;
            tick_cnt_reg  <= tick_cnt_next;
            bit_cnt_reg   <= bit_cnt_next;
            tx_done_reg   <= tx_done_next;
            tx_busy_reg   <= tx_busy_next;
        end
    end

    always_comb begin
        tx_next_state  = tx_state;
        temp_data_next = temp_data_reg;
        tx_next        = tx_reg;
        tick_cnt_next  = tick_cnt_reg;
        bit_cnt_next   = bit_cnt_reg;
        tx_done_next   = tx_done_reg;
        tx_busy_next   = tx_busy_reg;
        case (tx_state)
            IDLE: begin
                tx_next = 1'b1;
                tx_done_next = 0;
                tx_busy_next = 0;
                if (start) begin
                    tx_next_state  = START;
                    temp_data_next = tx_data;
                    tick_cnt_next  = 0;
                    bit_cnt_next   = 0;
                    tx_busy_next   = 1;
                end
            end
            START: begin
                tx_next = 1'b0;
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tx_next_state = DATA;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            DATA: begin
                tx_next = temp_data_reg[0];
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tick_cnt_next = 0;
                        if (bit_cnt_reg == 7) begin
                            tx_next_state = STOP;
                            bit_cnt_next  = 0;
                        end else begin
                            temp_data_next = {1'b0, temp_data_reg[7:1]};
                            bit_cnt_next   = bit_cnt_reg + 1;
                        end
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            STOP: begin
                tx_next = 1'b1;
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tx_next_state = IDLE;
                        tx_done_next  = 1;
                        tx_busy_next  = 0;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
        endcase
    end

endmodule

< Comment >

baudrate_gen
시스템 클럭(100 MHz)에서 UART 통신 속도 9600bps, 16배 오버샘플링(표준 UART 수신 방식) 조건에 맞춰 br_tick을 생성하는 모듈이다.
카운터 최대값을 100_000_000 / 9600 / 16 - 1로 설정하여, 해당 주기마다 br_tick을 1클럭 동안 High로 만들어 transmitter와 receiver가 동일한 baudrate 클럭에 동기화되도록 한다.

transmitter
UART 송신기를 구현한 모듈로, start 신호 입력 시 데이터(tx_data)를 UART 프레임 구조(1 start bit + 8 data bits + 1 stop bit)로 직렬 전송한다.
FSM(IDLE → START → DATA → STOP)으로 동작하며, 각 비트 전송은 baudrate 오버샘플링(16배) 기준 br_tick 신호에 맞춰 진행된다.
데이터 구동 시 LSB부터 순차적으로 전송하며, 모든 비트 전송이 완료되면 tx_done을 1로 설정하고 tx_busy를 0으로 복귀시켜 다음 전송을 준비한다.

< 파일 >

sources (Class)

uart.sv

sim (Class)

uart_tb.sv

Homework

< Design Specification >

receiver 설계 → uart 구현

uart + up down counter → PC 제어 (ComPortMaster)

“r” : run 상태

”s” : stop 상태

“c” : clear 상태

“m” : mode변경

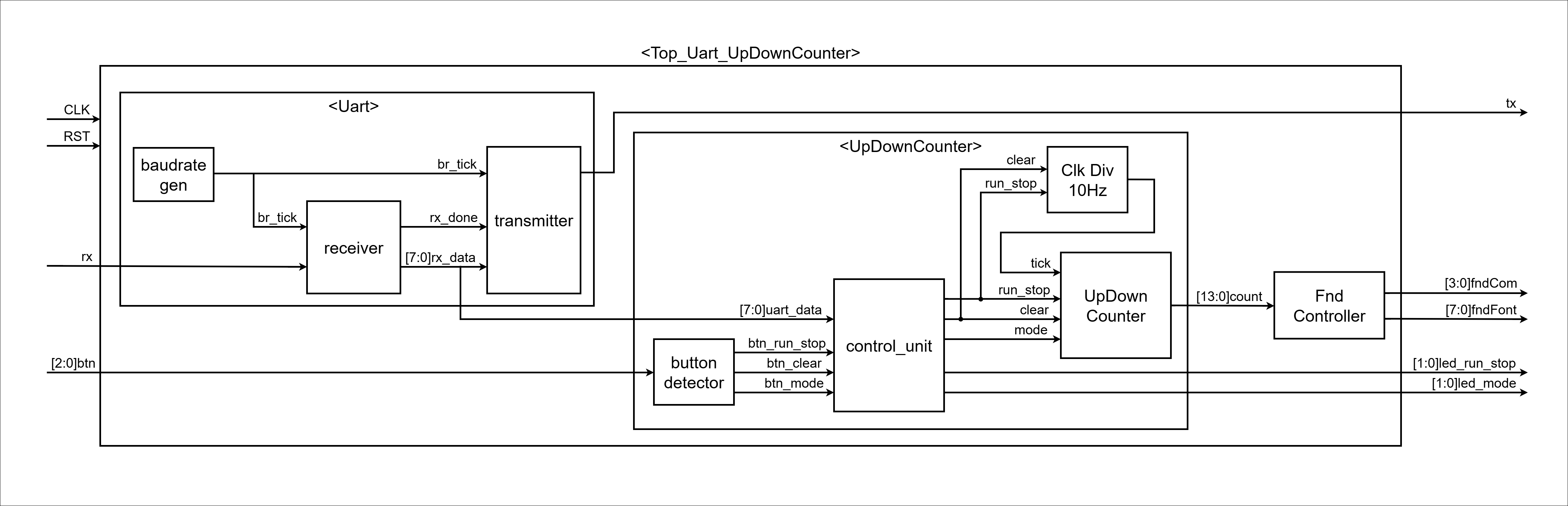

< Block Diagram >

alt text

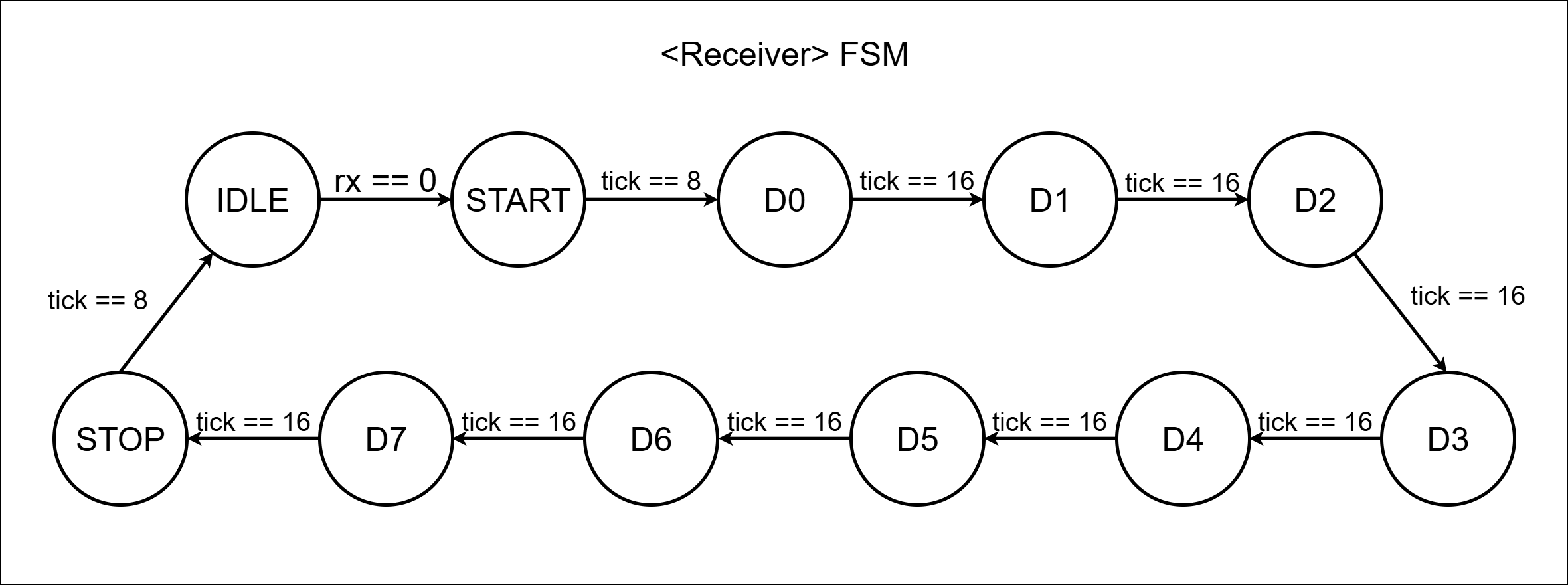

< FSM (receiver) >

alt text

< ASM (receiver) >

alt text

< Code : uart >

`timescale 1ns / 1ps

module uart (
    input  logic       clk,
    input  logic       reset,
    input  logic       rx,
    output logic       tx,
    output logic [7:0] uart_data
);

    logic br_tick;
    logic rx_done;
    logic [7:0] rx_data;

    assign uart_data = rx_done ? rx_data : 8'b0;

    baudrate_gen U_Baudrate_Gen (
        .clk    (clk),
        .reset  (reset),
        .br_tick(br_tick)
    );

    receiver U_Receiver (
        .clk    (clk),
        .reset  (reset),
        .br_tick(br_tick),
        .rx     (rx),
        .rx_data(rx_data),
        .rx_done(rx_done)
    );

    transmitter U_Transmitter (
        .clk    (clk),
        .reset  (reset),
        .br_tick(br_tick),
        .start  (rx_done),
        .tx_data(rx_data),
        .tx_busy(),
        .tx_done(),
        .tx     (tx)
    );

endmodule


module baudrate_gen (
    input  logic clk,
    input  logic reset,
    output logic br_tick
);

    logic [$clog2(100_000_000/9600/16)-1:0] br_counter;
    // logic [3:0] br_counter;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            br_counter <= 0;
            br_tick <= 1'b0;
        end else begin
            if (br_counter == 100_000_000 / 9600 / 16 - 1) begin  // 9600hz 9600bps
                // if (br_counter == 10 - 1) begin
                br_counter <= 0;
                br_tick    <= 1'b1;
            end else begin
                br_counter <= br_counter + 1;
                br_tick    <= 1'b0;
            end
        end
    end

endmodule


module receiver (
    input  logic       clk,
    input  logic       reset,
    input  logic       br_tick,
    input  logic       rx,
    output logic [7:0] rx_data,
    output logic       rx_done
);

    typedef enum {
        IDLE,
        START,
        DATA,
        STOP
    } rx_state_e;

    rx_state_e rx_state, rx_next_state;

    logic [7:0] rx_data_reg, rx_data_next;
    logic [4:0] tick_cnt_reg, tick_cnt_next;
    logic [2:0] bit_cnt_reg, bit_cnt_next;
    logic rx_done_reg, rx_done_next;

    assign rx_done = rx_done_reg;
    assign rx_data = rx_data_reg;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            rx_state     <= IDLE;
            rx_data_reg  <= 0;
            tick_cnt_reg <= 0;
            bit_cnt_reg  <= 0;
            rx_done_reg  <= 0;
        end else begin
            rx_state     <= rx_next_state;
            rx_data_reg  <= rx_data_next;
            tick_cnt_reg <= tick_cnt_next;
            bit_cnt_reg  <= bit_cnt_next;
            rx_done_reg  <= rx_done_next;
        end
    end

    always_comb begin
        rx_next_state = rx_state;
        rx_data_next  = rx_data_reg;
        tick_cnt_next = tick_cnt_reg;
        bit_cnt_next  = bit_cnt_reg;
        rx_done_next  = rx_done_reg;
        case (rx_state)
            IDLE: begin
                rx_done_next = 0;
                if (rx == 0) begin
                    rx_next_state = START;
                    rx_data_next  = 0;
                    tick_cnt_next = 0;
                    bit_cnt_next  = 0;
                end
            end
            START: begin
                if (br_tick) begin
                    if (tick_cnt_reg == 7) begin
                        rx_next_state = DATA;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            DATA: begin
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tick_cnt_next = 0;
                        rx_data_next  = {rx, rx_data_reg[7:1]};
                        if (bit_cnt_reg == 7) begin
                            rx_next_state = STOP;
                            bit_cnt_next  = 0;
                        end else begin
                            bit_cnt_next = bit_cnt_reg + 1;
                        end
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            STOP: begin
                if (br_tick) begin
                    if (tick_cnt_reg == 23) begin
                        rx_next_state = IDLE;
                        rx_done_next  = 1;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
        endcase
    end

endmodule


module transmitter (
    input  logic       clk,
    input  logic       reset,
    input  logic       br_tick,
    input  logic       start,
    input  logic [7:0] tx_data,
    output logic       tx_busy,
    output logic       tx_done,
    output logic       tx
);

    typedef enum {
        IDLE,
        START,
        DATA,
        STOP
    } tx_state_e;

    tx_state_e tx_state, tx_next_state;

    logic [7:0] temp_data_next, temp_data_reg;
    logic tx_reg, tx_next;
    logic [3:0] tick_cnt_reg, tick_cnt_next;
    logic [2:0] bit_cnt_reg, bit_cnt_next;
    logic tx_done_reg, tx_done_next;
    logic tx_busy_reg, tx_busy_next;

    assign tx = tx_reg;
    assign tx_busy = tx_busy_reg;
    assign tx_done = tx_done_reg;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            tx_state      <= IDLE;
            temp_data_reg <= 0;
            tx_reg        <= 1'b1;
            tick_cnt_reg  <= 0;
            bit_cnt_reg   <= 0;
            tx_done_reg   <= 0;
            tx_busy_reg   <= 0;
        end else begin
            tx_state      <= tx_next_state;
            temp_data_reg <= temp_data_next;
            tx_reg        <= tx_next;
            tick_cnt_reg  <= tick_cnt_next;
            bit_cnt_reg   <= bit_cnt_next;
            tx_done_reg   <= tx_done_next;
            tx_busy_reg   <= tx_busy_next;
        end
    end

    always_comb begin
        tx_next_state  = tx_state;
        temp_data_next = temp_data_reg;
        tx_next        = tx_reg;
        tick_cnt_next  = tick_cnt_reg;
        bit_cnt_next   = bit_cnt_reg;
        tx_done_next   = tx_done_reg;
        tx_busy_next   = tx_busy_reg;
        case (tx_state)
            IDLE: begin
                tx_next = 1'b1;
                tx_done_next = 0;
                tx_busy_next = 0;
                if (start) begin
                    tx_next_state  = START;
                    temp_data_next = tx_data;
                    tick_cnt_next  = 0;
                    bit_cnt_next   = 0;
                    tx_busy_next   = 1;
                end
            end
            START: begin
                tx_next = 1'b0;
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tx_next_state = DATA;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            DATA: begin
                tx_next = temp_data_reg[0];
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tick_cnt_next = 0;
                        if (bit_cnt_reg == 7) begin
                            tx_next_state = STOP;
                            bit_cnt_next  = 0;
                        end else begin
                            temp_data_next = {1'b0, temp_data_reg[7:1]};
                            bit_cnt_next   = bit_cnt_reg + 1;
                        end
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
            STOP: begin
                tx_next = 1'b1;
                if (br_tick) begin
                    if (tick_cnt_reg == 15) begin
                        tx_next_state = IDLE;
                        tx_done_next  = 1;
                        tx_busy_next  = 0;
                        tick_cnt_next = 0;
                    end else begin
                        tick_cnt_next = tick_cnt_reg + 1;
                    end
                end
            end
        endcase
    end

endmodule

< Comment >

uart
Baudrate Generator: 시스템 클럭(예: 100 MHz)에서 UART 속도(9600 bps, 16배 오버샘플링)에 맞춘 br_tick 생성. 송·수신 모듈 모두 이 신호로 타이밍 동기화.
Receiver: rx 입력을 샘플링해 8비트 데이터(rx_data) 복원, 수신 완료 시 rx_done=1 출력.
Transmitter: rx_done 신호를 start로 받아, 수신한 데이터를 그대로 직렬 송신(tx).
uart_data: rx_done 시점에만 유효 데이터를 출력, 그 외에는 0 유지. 전체적으로 수신한 데이터를 즉시 재전송(Echo)하는 구조이며, 모든 시퀀스는 br_tick 기반으로 송·수신 동기를 유지한다.

receiver
UART 수신기. rx의 start-bit(낙하) 감지 후 16배 오버샘플링 기준 br_tick에 맞춰 비트 중앙에서 샘플링한다.

< Code : top_Uart_UpDownCounter >

`timescale 1ns / 1ps

module top_Uart_UpDownCounter (
    input  logic       clk,
    input  logic       reset,
    input  logic [2:0] btn,
    input  logic       rx,
    output logic       tx,
    output logic [1:0] led_mode,
    output logic [1:0] led_run_stop,
    output logic [3:0] fndCom,
    output logic [7:0] fndFont
);

    logic [7:0] uart_data;

    uart U_Uart (
        .clk      (clk),
        .reset    (reset),
        .rx       (rx),
        .tx       (tx),
        .uart_data(uart_data)
    );

    top_UpDownCounter U_Top_UpDownCounter (
        .clk         (clk),
        .reset       (reset),
        .btn         (btn),
        .uart_data   (uart_data),
        .led_mode    (led_mode),
        .led_run_stop(led_run_stop),
        .fndCom      (fndCom),
        .fndFont     (fndFont)
    );

endmodule

< Code : UpDownCounter (control_unit) >

// ...
module control_unit (
    input  logic       clk,
    input  logic       reset,
    input  logic       btn_mode,
    input  logic       btn_run_stop,
    input  logic       btn_clear,
    input  logic [7:0] uart_data,
    output logic       mode,
    output logic       run_stop,
    output logic       clear,
    output logic [1:0] led_mode,
    output logic [1:0] led_run_stop
);
    /******************** MODE FSM ********************/

    typedef enum {
        UP,
        DOWN
    } state_mode_e;

    state_mode_e state_mode, next_state_mode;

    // state memory
    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            state_mode <= UP;
        end else begin
            state_mode <= next_state_mode;
        end
    end

    // transition logic
    always_comb begin
        next_state_mode = state_mode;
        mode = 0;
        led_mode = 2'b00;
        case (state_mode)
            UP: begin
                led_mode = 2'b01;
                if (btn_mode || (uart_data == "m")) begin
                    next_state_mode = DOWN;
                end
            end
            DOWN: begin
                mode = 1;
                led_mode = 2'b10;
                if (btn_mode || (uart_data == "m")) begin
                    next_state_mode = UP;
                end
            end
        endcase
    end

    /******************** RUN STOP CLEAR FSM ********************/

    typedef enum {
        STOP,
        RUN,
        CLEAR
    } state_counter_e;

    state_counter_e state_counter, next_state_counter;

    always_ff @(posedge clk, posedge reset) begin
        if (reset) begin
            state_counter <= STOP;
        end else begin
            state_counter <= next_state_counter;
        end
    end

    always_comb begin
        next_state_counter = state_counter;
        run_stop = 0;
        clear = 0;
        led_run_stop = 2'b00;
        case (state_counter)
            STOP: begin
                led_run_stop = 2'b01;
                if (btn_run_stop || (uart_data == "r"))
                    next_state_counter = RUN;
                else if (btn_clear || (uart_data == "c"))
                    next_state_counter = CLEAR;
            end
            RUN: begin
                run_stop = 1;
                led_run_stop = 2'b10;
                if (btn_run_stop || (uart_data == "s"))
                    next_state_counter = STOP;
            end
            CLEAR: begin
                clear = 1;
                next_state_counter = STOP;
            end
        endcase
    end

endmodule

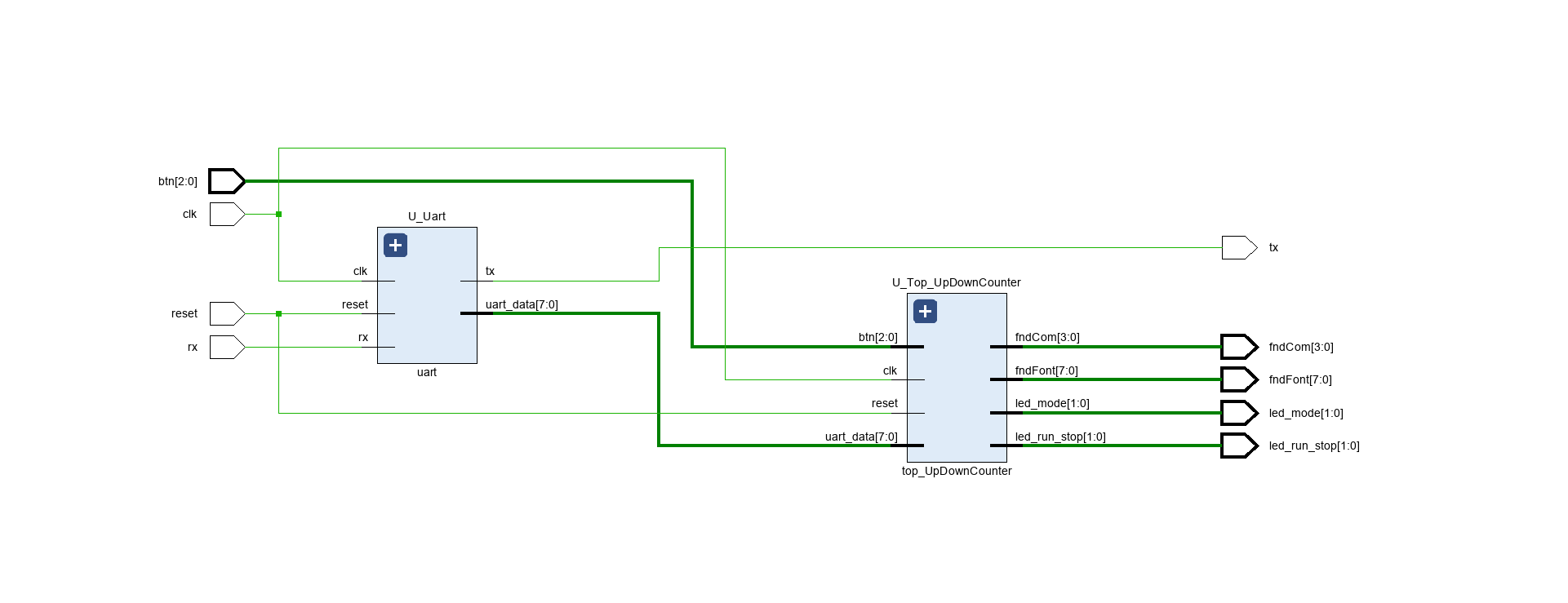

< Schematic >

alt text

< Video >

< 고찰 >

control_unit에서 UART 데이터를 입력받아 상태 변경 사항을 업데이트하도록 설계 → 확장성 확보

< 파일 >

sources (Homework)

top_Uart_UpDownCounter.sv

uart.sv

top_UpDownCounter.sv

button_detector.sv

UpDownCounter.sv

fndController.sv

constrs (Homework)

Basys-3-Master.xdc

hong.com

Contact

Run_Stop_Clear_Counter Design

< Code : UpDownCounter >

< Comment >

< 파일 >

Serial 통신 프로토콜

1. UART

2. I²C

3. SPI

UART / I²C / SPI 비교

Uart (Transmitter) Design

< Block Design >

< FSM (Transmitter) >

< ASM (Transmitter) >

< Code : Uart (Transmitter) >

< Comment >

< 파일 >

Homework

< Design Specification >

< Block Diagram >

< FSM (receiver) >

< ASM (receiver) >

< Code : uart >

< Comment >

< Code : top_Uart_UpDownCounter >

< Code : UpDownCounter (control_unit) >

< Schematic >

< Video >

< 고찰 >

< 파일 >
